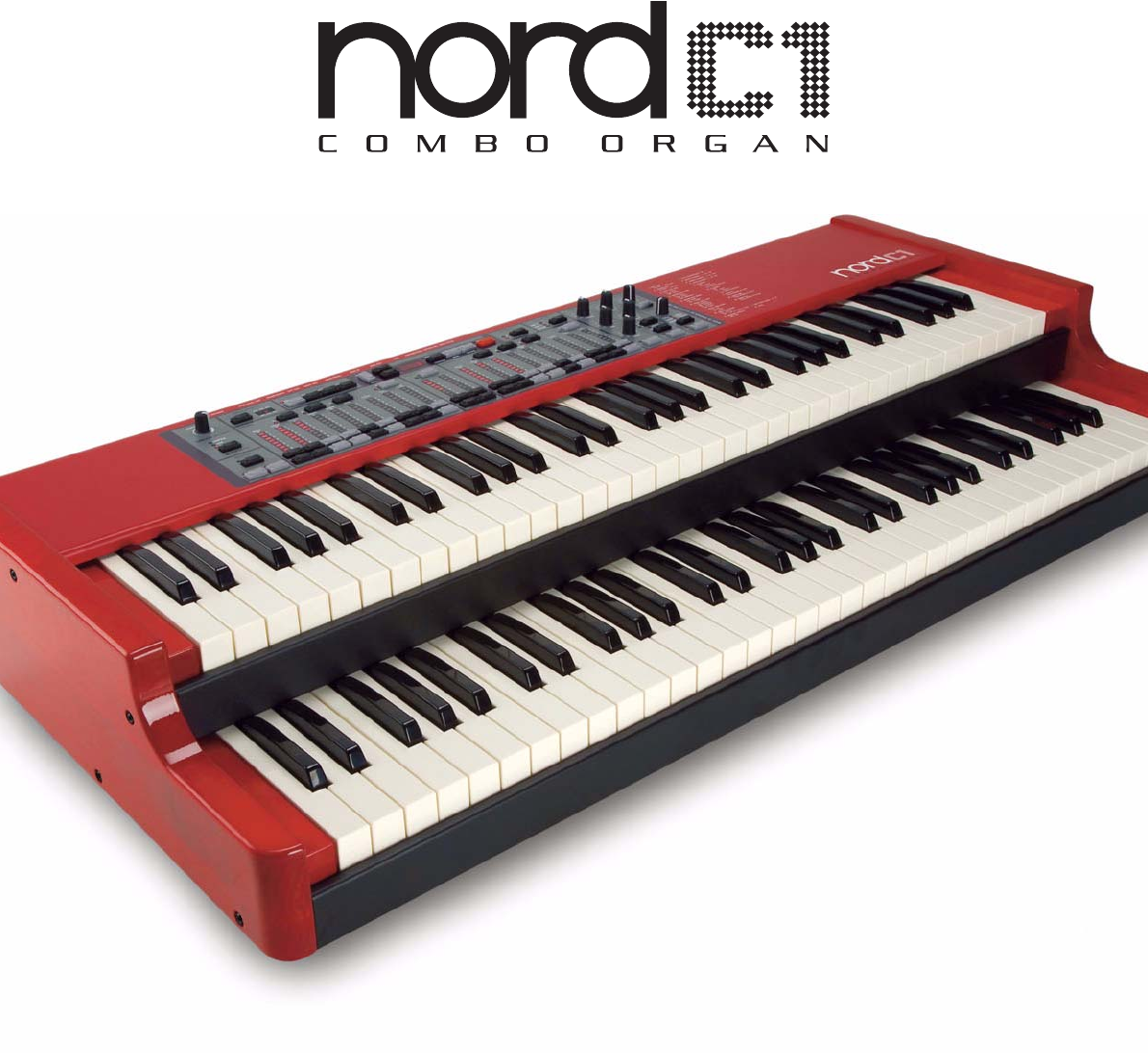

USER MANUALPart No. 50300 Nord C1 Combo Organ OS V1.0X Copyright Clavia DMI AB 2007

The Organ Section User Manual 10THE TONEWHEEL MODELThis model is based on a digital simulation of the classic mechanical tone wheel organ. This simula

Nord C1 Combo Organ The Organ Section OS V1.0X11Please note that the VIBRATO/CHORUS button for the LOW-ER manual also controls the effect for the bass

The Organ Section User Manual 12select instrument “voices” (actually different filter settings) in various footage (octave) ranges.The Drawbar buttons

Nord C1 Combo Organ The Effect Section OS V1.0X13The Effect SectionThe effect section consists of 7 models, routed as illustrat-ed below.The Overdrive

The Effect Section User Manual 14Controlling the Rotary Speaker speedThe rotary speaker speed is set with the buttons of the ROTARY SPEAKER section.Yo

Nord C1 Combo Organ System Functions OS V1.0X15System FunctionsABOUT SYSTEM SETTINGSSystem settings are global; they are not stored within a program,

System Functions User Manual 16THE SOUND MENU1-16 Note messages are sent on the corresponding MIDI channel using the fast trigger mode, with fixed vel

Nord C1 Combo Organ MIDI Implementation OS V1.0X17MIDI ImplementationMIDI IMPLEMENTATION CHARTMIDI CONTINUOUS CONTROLLER LISTFunction Transmit Receive

How-tos User Manual 18How-tosThis section contains detailed guides on how to quickly set-up your instrument to match various conditions.CONNECTING A B

Nord C1 Combo Organ How-tos OS V1.0X195 Set program change modeNormally program change messages are sent via MIDI OUT on the channels specified by the

The lightning ash with the arrowhead symbol within anequilateral triangle is intended to alert the user to thepresence of uninsulated voltage within

Index User Manual 20IndexAAudio connections ...6BBass pedal ...6Bass pedal, connecting

Nord C1 Combo Organ OS V1.0X3INTRODUCTION ... 4Thank you!...

Introduction User Manual 4IntroductionTHANK YOU!We would first like to thank you for purchasing the Nord C1 Combo Organ! We hope you will find it to b

Nord C1 Combo Organ Overview OS V1.0X5OverviewTHE FRONT PANELThe Nord C1 Combo Organ front panel consists of 3 sec-tions:Organ sectionThe Organ Sectio

Connections User Manual 6ConnectionsTHE REAR PANELAUDIO CONNECTIONSThe Nord C1 Combo Organ has three types of audio con-nectors:Main stereo outputThe

Nord C1 Combo Organ Connections OS V1.0X7Please refer to “Sustain Pedal Polarity” on page 15 or “Ad-justing the pedal polarity” on page 18 for detaile

The Program Section User Manual 8The Program SectionWHAT IS A PROGRAM?All sound related knob and button settings, including PRE-SETS can be stored int

Nord C1 Combo Organ The Organ Section OS V1.0X9The Organ SectionThe Nord C1 Combo Organ features simulations of three classic organ models; one tonewh
